Wind tunnel inlet and test section
Case Study • Wind tunnel platform • In progress

A test platform built to publish only what can be repeated.

This wind tunnel is being developed as a real engineering platform rather than a headline claim. The target is 60 m/s laminar airflow in the working volume, backed by structured instrumentation, stable control behaviour and a commissioning process that produces trustworthy, comparable data.

Status In active development, with final measured results to be published only after full instrumentation and proving.
Main target 60 m/s laminar airflow through a defined working volume with stable, repeatable operating conditions.
Main challenge Build airflow, control and measurement into one platform where results remain comparable between runs.
Outcome target A trustworthy test environment rather than a one-off impressive airflow number.

What makes a wind tunnel useful instead of just visually impressive

The hard part is not only moving air quickly. It is creating a test environment where conditions are stable enough, sensors are located intelligently enough and the workflow is disciplined enough that different runs can be compared honestly.

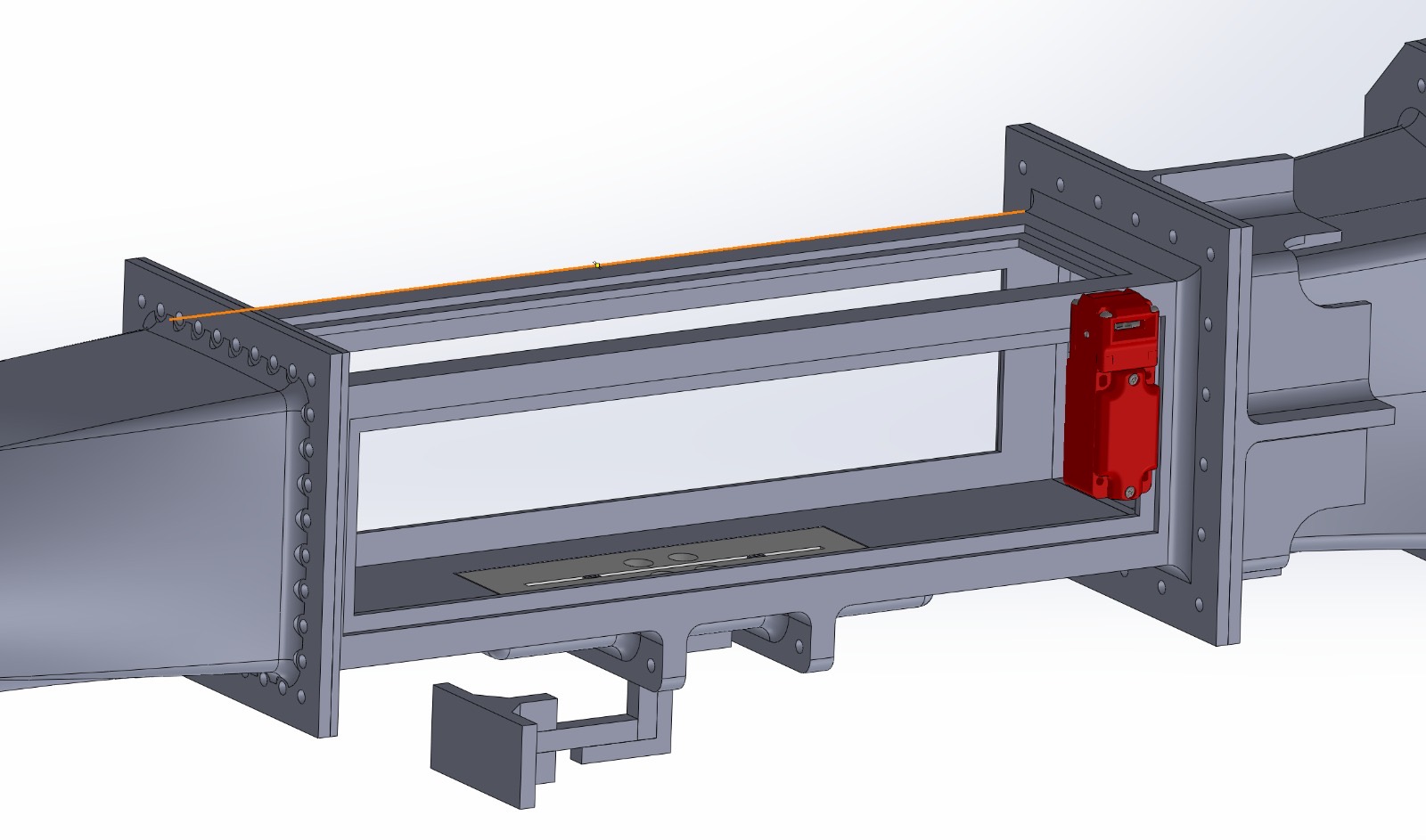

Wind tunnel CAD working volume
Overview

An engineering platform first, not a marketing claim.

The build is still in development, so the page stays focused on the engineering method rather than pretending the final proof is already complete. The objective is straightforward: produce high-speed airflow through a defined working volume and support that with instrumentation, logging and commissioning workflow strong enough to make the resulting data meaningful.

That is what separates a useful test platform from a one-off demonstration.

Development in progress
Measured results later
Repeatability first
Supportable instrumentation

One-line positioning

A wind tunnel platform built to generate trustworthy, repeatable test conditions rather than simply move a lot of air once.

Target outcome

Stable, high-speed airflow through a defined working volume with instrumentation and logging that make comparisons between runs honest and usable.

Capability areas being developed together

This is a joined-up platform: airflow, measurement, controls and commissioning all have to cooperate for the results to mean anything.

Airflow design

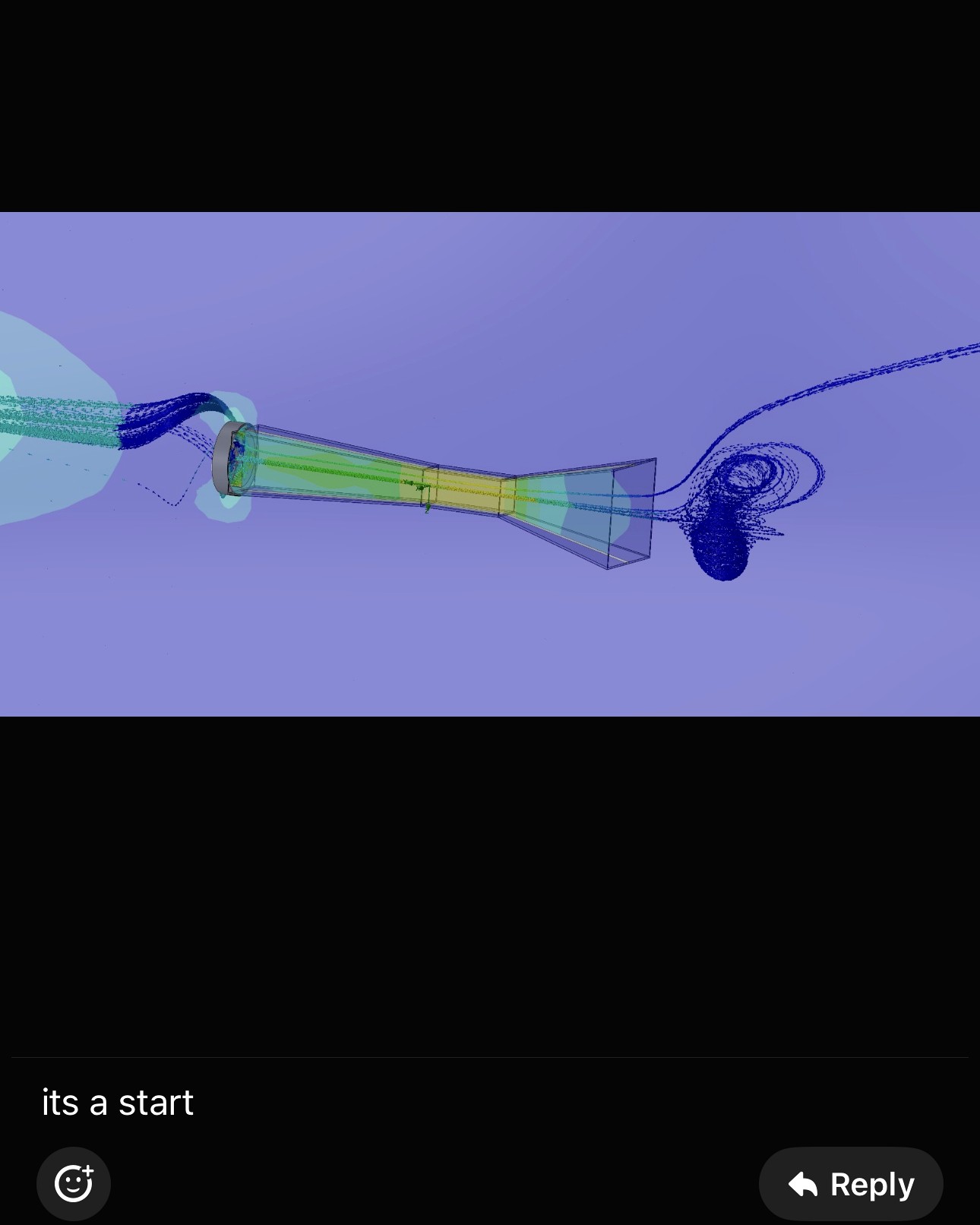

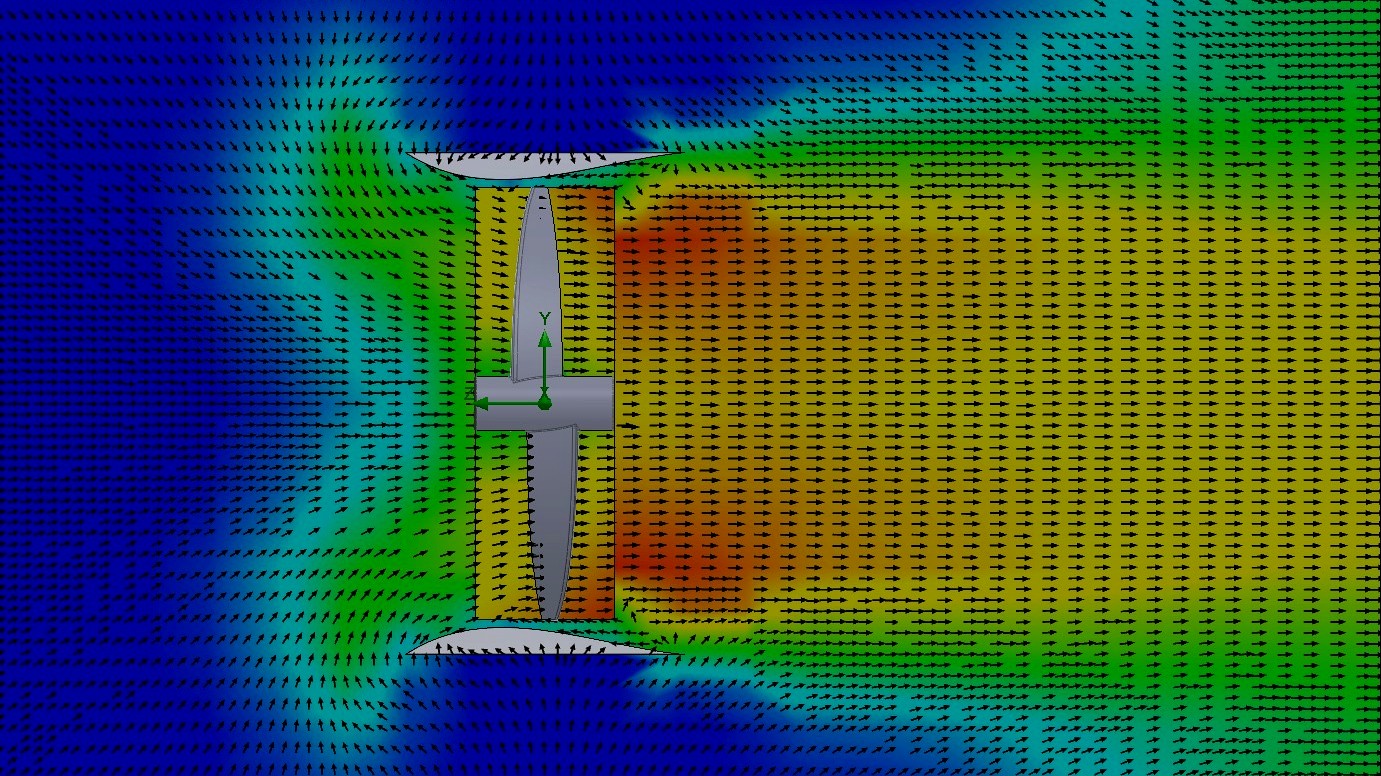

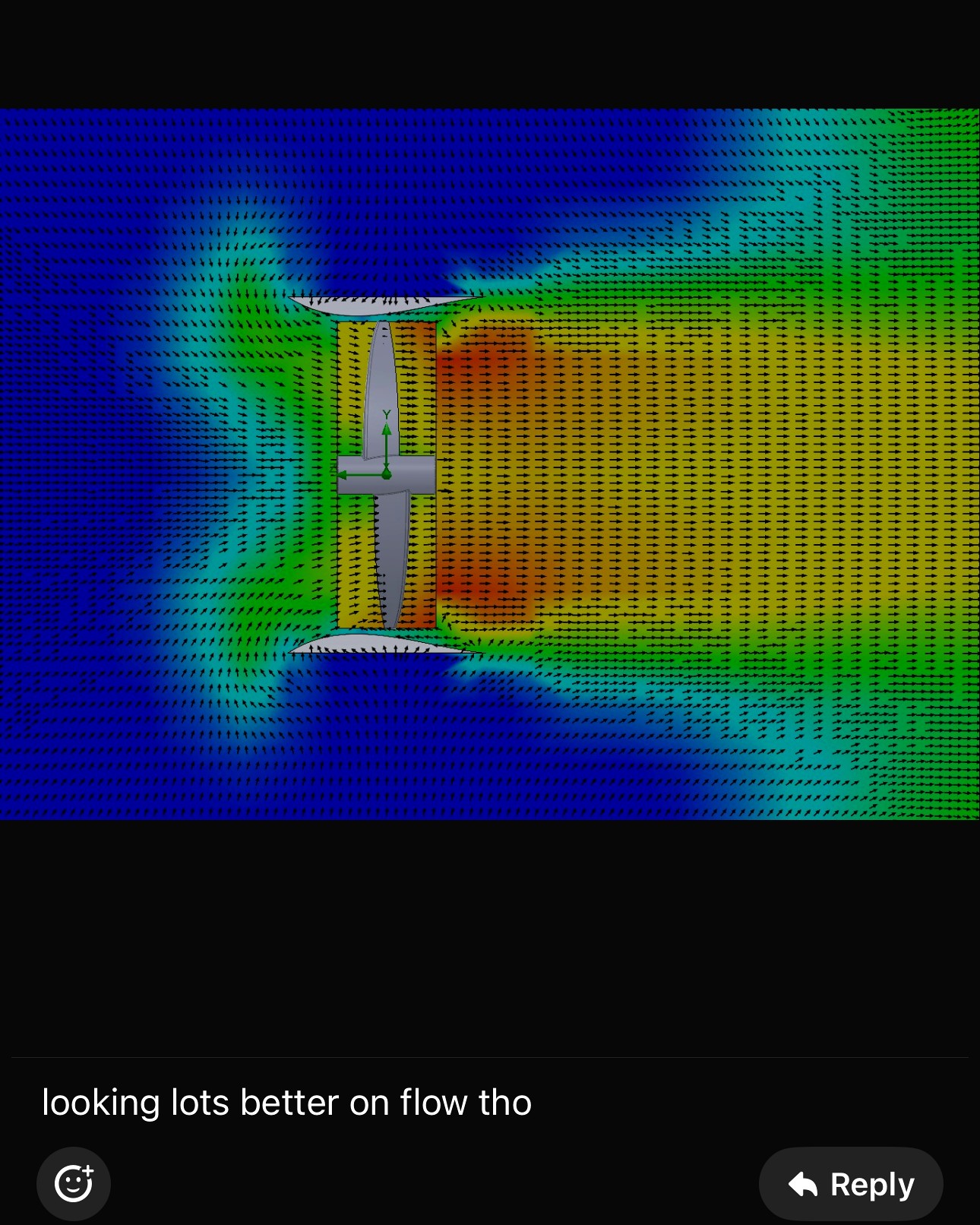

Iterative ducting, conditioning and working-volume geometry aimed at high-speed, low-turbulence performance.

Instrumentation plan

Pressure, velocity and temperature signals selected and located so the data can support real engineering decisions.

Control system

Structured enable, run and stop behaviour suitable for repeated testing rather than one-off demonstration runs.

Data logging

Run conditions, analogue trends and state traces captured in a usable format for comparison between iterations.

Commissioning workflow

Bring-up covering IO checkout, scaling, signal validation, alarm injection and recovery testing.

Maintainable handover

IO schedules, wiring notes, baseline settings and test procedures produced alongside the build, not after it.

How performance is validated

Publish only what can be measured and repeated.

Target figures only matter if they can be demonstrated consistently. The validation plan is built around repeatable test conditions, stable instrumentation and a clear baseline procedure so different runs can be compared fairly instead of relying on one impressive number.

That avoids the common failure mode of making performance claims from isolated results without the evidence behind them.

Wind tunnel inlet and section

What will be measured

  • Velocity profile through the working volume
  • Pressure behaviour and stability over time
  • Temperature influence where relevant to the test regime
  • Control stability, setpoint response and recovery behaviour

What will be published

  • Instrumentation layout and baseline test procedure
  • Representative run plots once calibration is complete
  • Final build imagery where it adds engineering value
  • Lessons learned that transfer to other test rigs

Build and commissioning workflow

Test platforms only become useful when the workflow around them is disciplined enough that the results remain comparable.

Workflow

  1. Define target conditions and what counts as acceptable performance
  2. Design for serviceability, access and safe operation during testing
  3. Build the control structure first: states, permissives and stop behaviour
  4. Instrument and validate signals with scaling and noise awareness in mind
  5. Run repeatable tests and compare results across iterations

Typical outputs

  • Test procedure and commissioning checklist
  • Sensor map and IO schedule aligned to terminals and tags
  • Logging format and baseline run settings
  • Fault and recovery notes for operators and engineers
Enquiries

Send the target conditions, what must be measured and the main constraints.

Useful starting context includes working volume size, required flow quality, what you need to measure, expected duty cycle and any power, noise, space or safety constraints that shape the design.
