This CNC-linked automation cell is being developed as a real capability platform rather than a showroom mock-up. The focus is on cell sequencing, interlocks, safe states, recoverability, practical commissioning and the handover quality needed to support a production system properly.
The point is not to show a robot next to a machine. The point is to build a platform where the important behaviour can be designed, tested and documented properly before it has to survive production pressure.
The cell is being structured around clear ownership of ready, running, hold, abort, stop and fault states so operators and engineers can see exactly what the system thinks is happening.
A cell only becomes supportable when the difficult cases are tested deliberately: door opened mid-cycle, device dropout, handshake timeout, incomplete reset path or operator intervention at the wrong moment.
The platform is being used to prove handshake design, timing behaviour, acknowledgement structure, timeout handling and the way alarms surface across the different layers of the system.
The long-term aim is a repeatable engineering pack: IO references, known-good states, test order, alarm intent and notes that let another person pick up the cell without reverse-engineering everything.
This is being used to validate the details that decide whether a cell feels robust or fragile in practice: interlocks, enable chains, alarm cause-and-recovery wording, cell-to-machine handshakes, mode handling, and the consistency between hardware state and software state.
The aim is a modular approach that can scale toward real CNC-linked automation without losing clarity around fault paths, ownership of actions or handover quality.
A modular automation cell used to validate machine-ready sequencing, robot integration, safe operating modes, and the documentation standard needed for future support.
Many automation failures are not hardware failures at all. They come from ambiguous ownership, poor restart logic, weak alarms, inconsistent state handling or missing commissioning evidence. This build exists to remove those.
Selected images showing the hardware context, integration workflow and the thinking behind the cell.
Real guarding, access and maintenance considerations shape the cell behaviour from the start.
Predictable state flow, repeatable cycle behaviour and recoverable faults remain the target outcome.
Bring-up is being structured around IO, permissives, handshakes, alarms and recovery tests.
Layout and interface planning help reduce risk before hardware decisions are locked in.

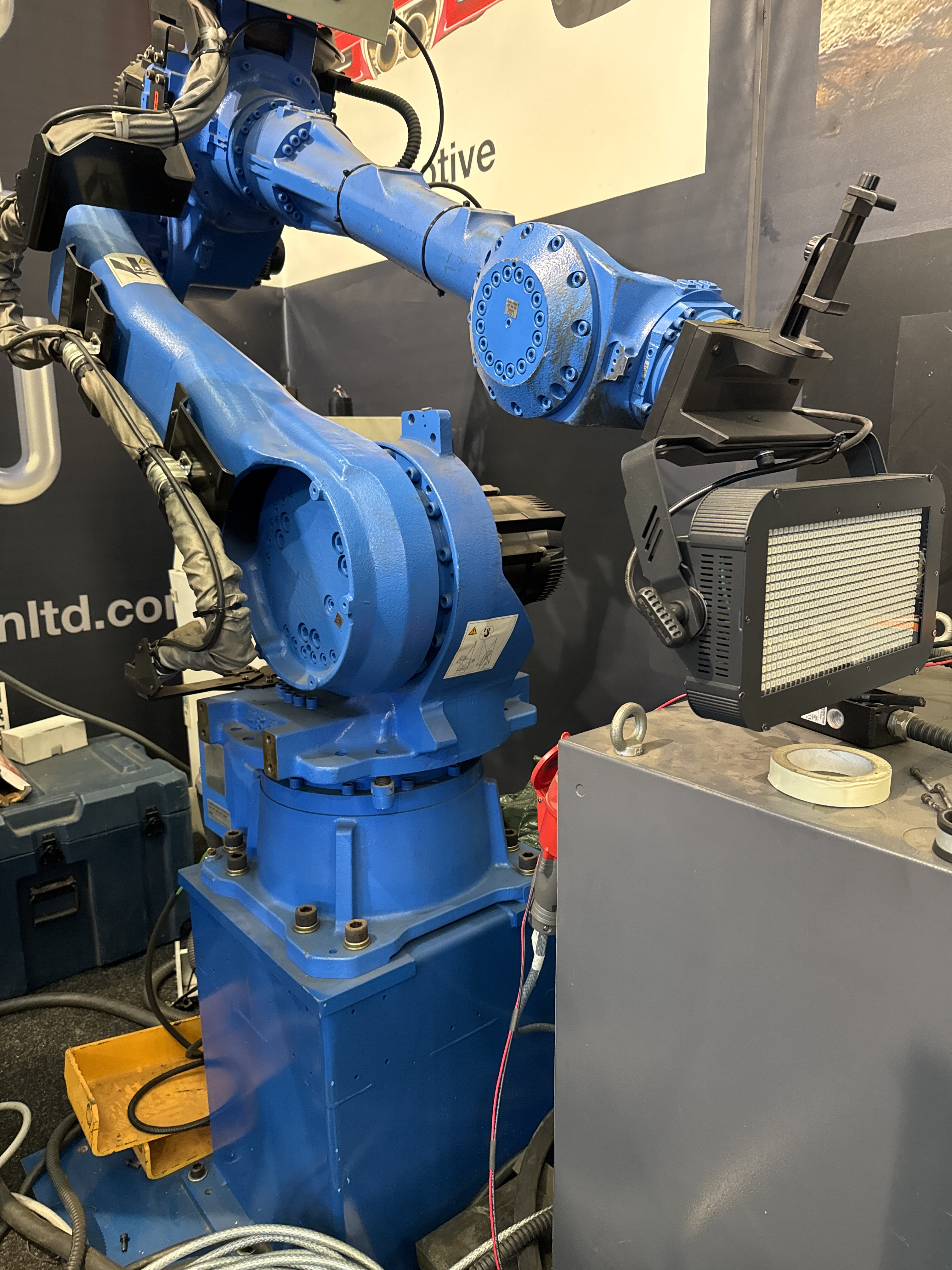

Inspection and sensing are being treated as part of the cycle logic, not as detached add-ons.

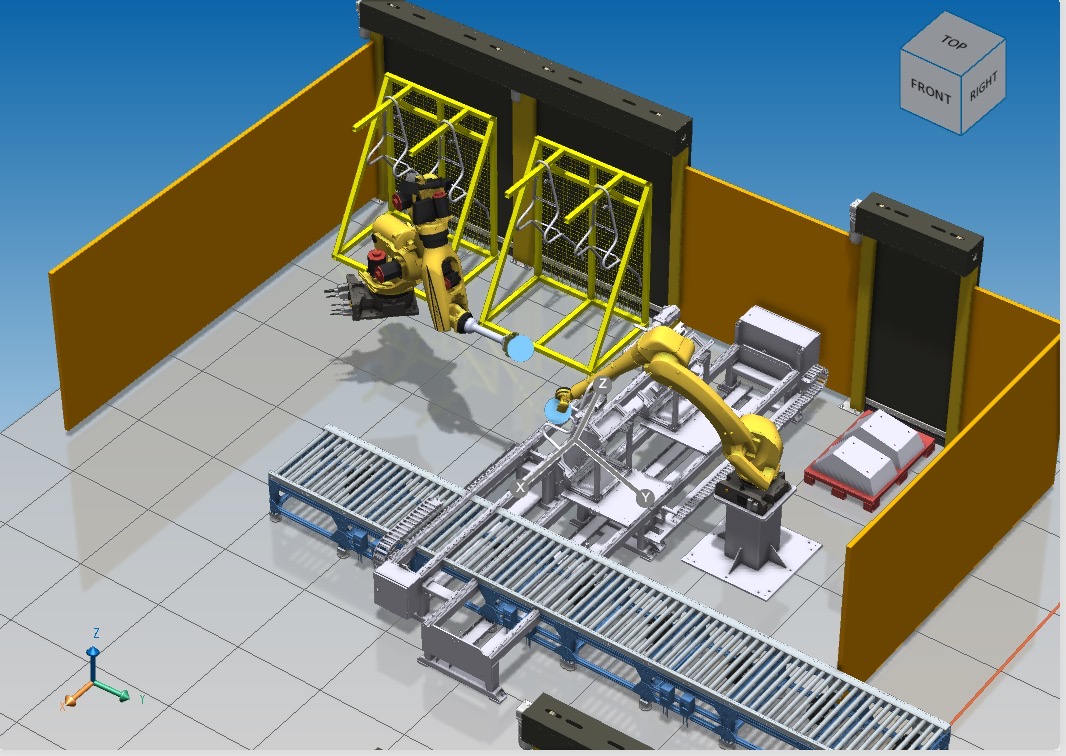

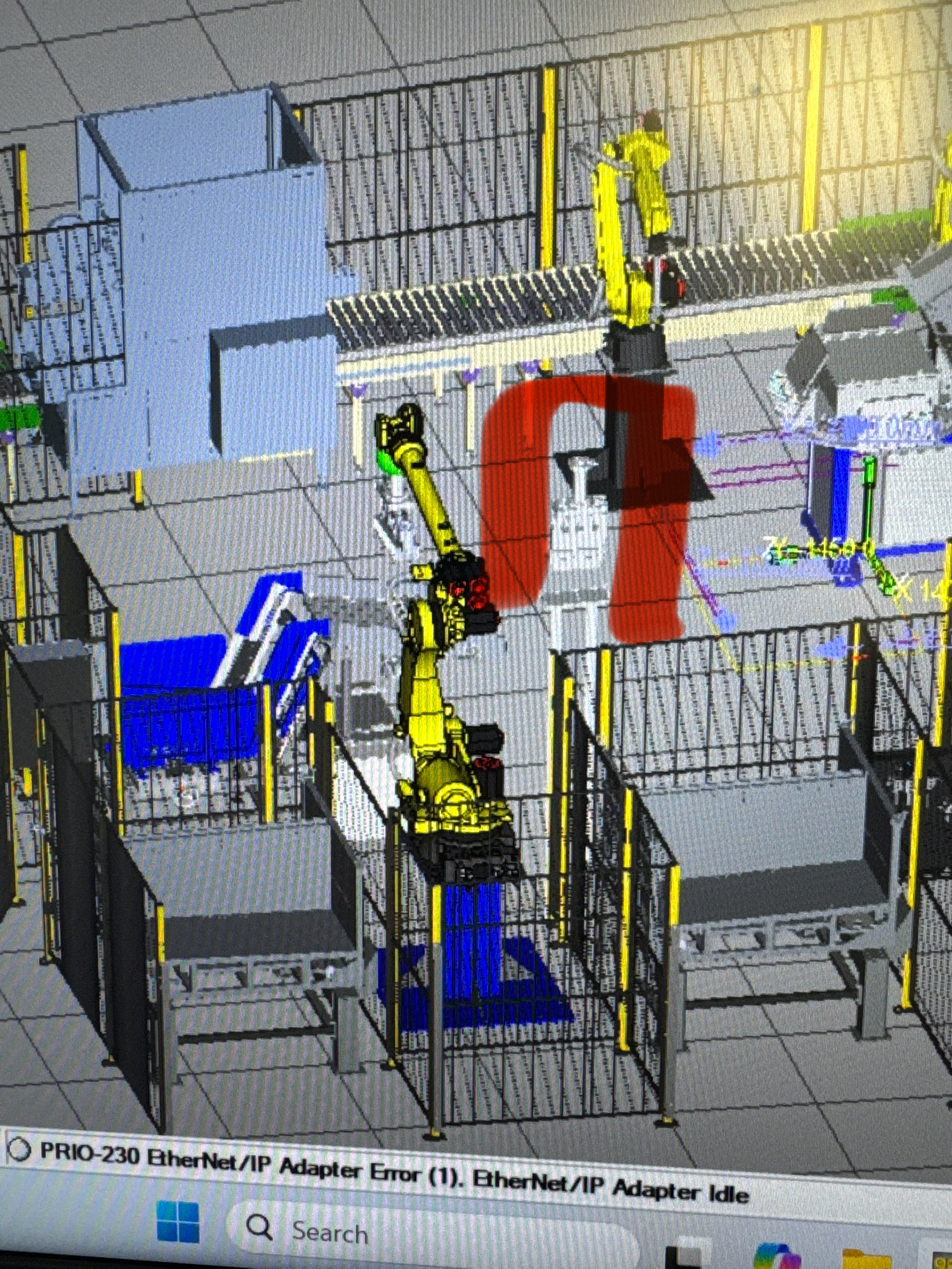

Simulation supports timing, path and sequence decisions before they affect the physical cell.
The cell is being used to develop the behaviours and standards that matter most on real automation work.
State-driven control from safe idle through ready, run, hold, abort and fault, with clear ownership of transitions.
Enable and stop logic structured so unexpected conditions become visible and the cell returns to a defined safe state.
Door, guard, machine-ready and axis conditions designed to avoid surprises when the environment changes mid-cycle.
Bring-up steps written to be repeatable: IO checkout, mode checks, handshake proof, alarms and recovery tests.
Operator-facing alarms intended to explain the cause and next step, backed by engineering detail for fault-finding.
IO schedules, commissioning notes, interface notes and acceptance structure designed so another engineer can support the result.
The architecture is being approached as cooperating layers rather than one mixed block of logic: overall cell controller, machine or robot execution layer, safety layer and operator layer. The exact hardware mix can evolve, but the responsibility boundaries stay clear.
That makes fault paths easier to read, interface behaviour easier to test, and long-term maintenance much easier than hiding behaviour inside undocumented side-effects.
Progress is framed around what has been defined, tested and proved rather than claiming completion too early.
Define ready, run, hold, stop and recover, including safety behaviour and awkward edge cases.
IO schedule, terminals, cable IDs, naming and wiring strategy that supports troubleshooting properly.
State model, alarm structure, interface wrappers and a commissioning-safe workflow.
Bring-up checklist, traces, alarm-injection tests and documentation updates tied to the real build.
The target is a clean handover so the cell can be run, diagnosed and maintained without hidden dependencies.
